Design⚓︎

Core Concepts⚓︎

As described in the building block architecture, the main concept of the Harvester is a workflow, which provides an integration with a specific data source or provider and defines customised resource harvesting and interpretation. It is designed to be pluggable into the Harvester for a given deployment, making the Resource Registration BB easily extensible for other datasets, that need to be made available for discovery and access.

Workflow engine⚓︎

The workflow engine is the central element of the Harvester. It executes and manages predefined workflows. The Harvester uses Operaton which is a BPMN based open-source workflow engine. It offers a REST API to manage and execute workflows.

Workflow definition⚓︎

A workflow definition is a static representation of the workflow as a BPMN 2.0 process definition. It defines the sequence of tasks, activities or operations to be executed during the workflow and is usually stored as XML file with a .bpmn extension. It can be created with the Camunda Modeler application or any other BPMN editor, which is able to create BPMN definitions.

Before any workflow can be executed by Operaton, a workflow definition must be submitted (or deployed) through its REST API, using the beforehand created BPMN file. Once deployed, the workflow definition is represented as a process definition resource by Operaton.

Workflow instance⚓︎

A workflow instance is a running workflow which was created from a workflow definition. Workflow instances can be created automatically by Operaton itself or externally through the REST API. A workflow instance is represented by Operaton as a process instance resource.

External Worker⚓︎

An external worker is an entity that is independent of the workflow engine. It does not need to run in the same process, on the same machine or in the same cluster, etc.

When Operaton encounters a workflow task that is configured to be externally handled, it provides this unit of work as a job, which can be polled and acquired by an external worker. The worker then executes the job and sends the result back to Operaton. For the communication of workflow engine and external worker the REST API is used.

The benefit of this pattern is that the entities performing the actual work are independent of the workflow engine. This allows, for example, the worker to be scaled out or maintained independently.

Every workflow tasks contained in all of the Harvester workflows is defined as an external task and requires an implementation by an external worker.

Built-in workflows⚓︎

This section describes the workflows which are already implemented in the Harvester component. These include the harvesting and registration of - Sentinel data from the Copernicus Dataspace Ecosystem (CDSE) - Landsat data from USGS - generic STAC catalogs from network URLs

Please refer to the building block demo notebook for examples, how to manage and operate this workflows.

Landsat⚓︎

Overview⚓︎

The Landsat workflow consists of two BPMN processes. The main process (Landsat Registration) searches the Landsat STAC API for new data. For all scenes found, a download URL is requested from the USGS Machine-to-Machine (M2M) interface.

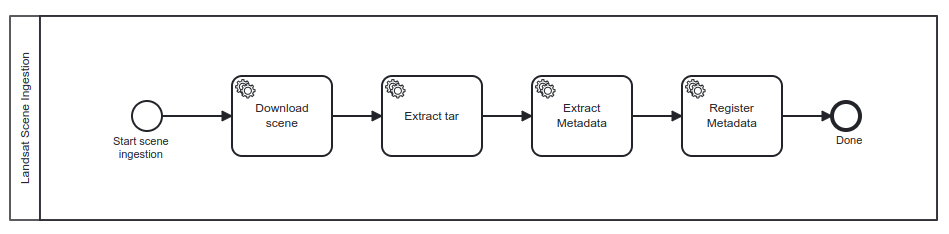

Then, the Landsat Scene Ingestion workflow is executed for each scene individually to perform the steps to

download the data from USGS,
extracting the downloaded file,
generating the STAC metatdata using the stactools landsat package and
registering the STAC item at the Resource Catalog of the Resource Discovery building block.

Operation modes⚓︎

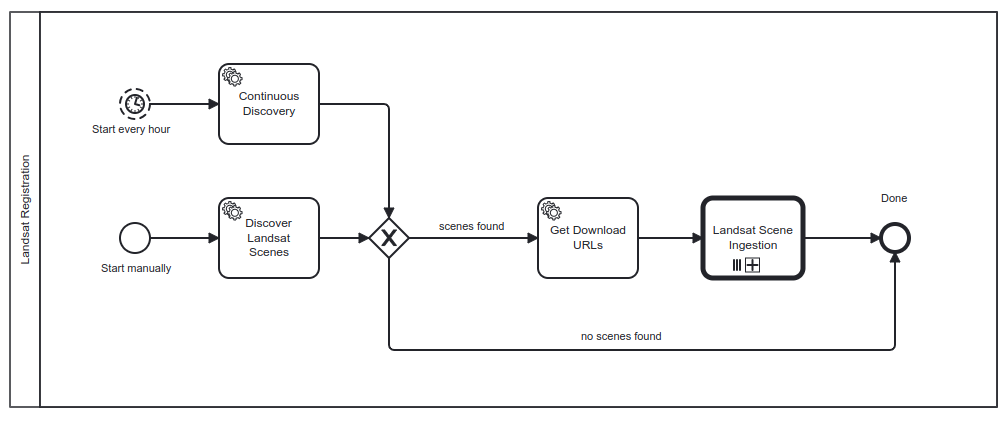

The workflow supports two different operation modes. As it can been in the BPMN diagram, both modes differ in their implementation of the discovery task.

In the continuous mode, the workflow is executed automatically every hour by the Operaton workflow engine and the data discovery is done with a shifting time window. The size of the window (default 1 hour) can be set in the workflow configuration together with additional search filters (see below). The main use case of this mode is to perform the systematic EO data provisioning into the exploitation platform.

The manual mode is executed when the workflow is exlicitly started by sending a HTTP request to the Operaton REST API. In this case the data discovery solely is based on the filter parameters which are included in the body of the HTTP request. No time window is calculated automatically. This mode is useful in cases, where a certain set of data meeting specific criteria needs to be ingested into the platform.

Search parameter⚓︎

The discovery of scenes at the Landsat STAC API can be parameterized to fit the data requirements of the platform users.

In manual mode, the following parameters can be used to filter the search results. Since this mode is triggered by a HTTP request, these parameters must be included in the request body. See the demo notebook for details.

Name	Description	Default	Example
collection	Comma-separated list of collection names to search	None	`landsat-c2l2-sr`
bbox	Comma-separated list of coordinates representing a bounding box of the search area	None	`8,40,18,60`
datetime_interval	A date-time or an interval, open or closed. Date and time expressions adhere to RFC 3339	None	`2024-11-12T15:00:00Z/2024-11-12T16:00:00Z`
query	A query in the syntax of the STAC API Query extension	None	`"created": {"gte": "2024-12-13T15:00:00.000000Z", "lt": "2024-12-13T16:00:00.000000Z"}}`

In continuous mode, the following parameters can be used. Since this mode is triggered by the workflow engine itself and no HTTP request is involved, these values must be provided in the configuration of the corresponding the worker instance.

Name	Description	Default	Example
collection	Comma-separated list of collection names to search	None	`landsat-c2l2-sr`
bbox	Comma-separated list of coordinates representing a bounding box of the search area	None	`8,40,18,60`
timewindow_hours	Size of the calculated time window in hours	`1`	`1`
datetime_property	STAC property to be used for the time window	`created`
