User Manual

Introduction

The aim of the Application Quality service is to support the evolution of a scientific algorithm (processing workflow) from a research project to one that can be utilised in a production environment. To achieve this, the Application Quality service provides tools to support verifying non-functional requirements - including code quality, software development best practice for open reproducible science, and optimisation through performance testing.

Service User Portal

Unauthenticated users may access the service web portal and inspect the available analysis tools and pipelines. They may not create, edit or execue analysis pipelines nor access execution reports.

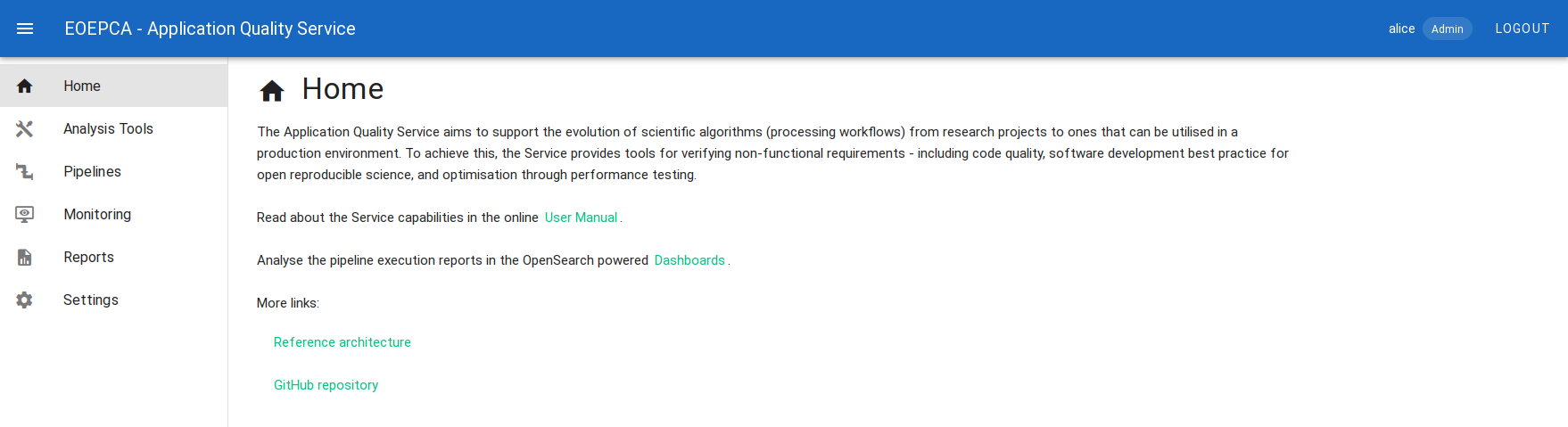

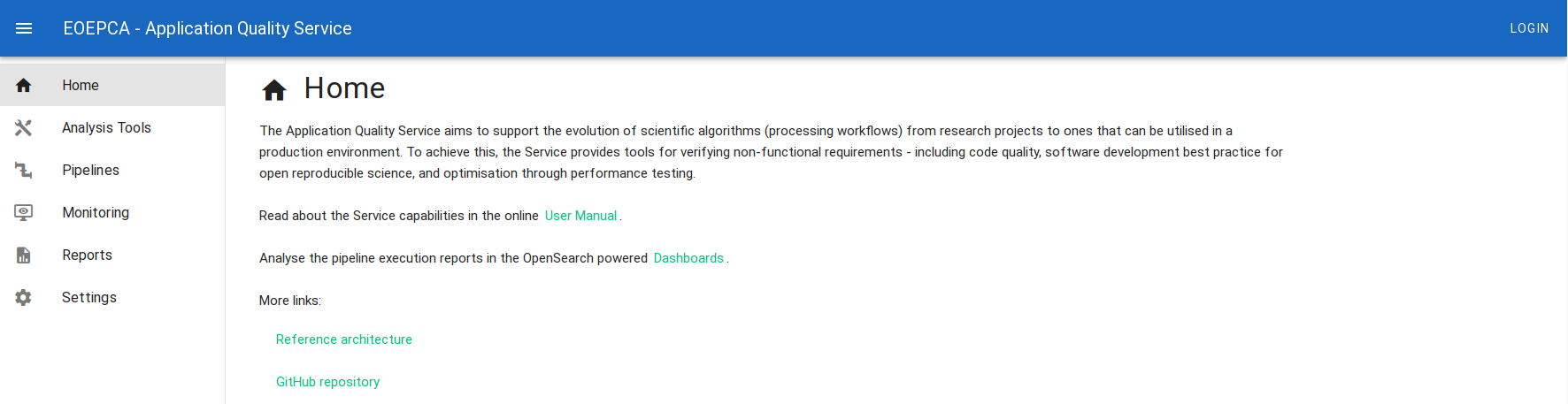

As seen on the figure below, the portal includes three areas:

• The navigation bar which contains the service name, the login/logout buttons and the name of the authenticated user. A button allows hiding and revealing the side menu.
• A side menu that gives access to different resources managed in the service, including the individual analysis tools, the pipelines, the pipeline runs (executions) and the execution reports.
• The content of the main area depends on the entry selected in the side menu.

Authentication

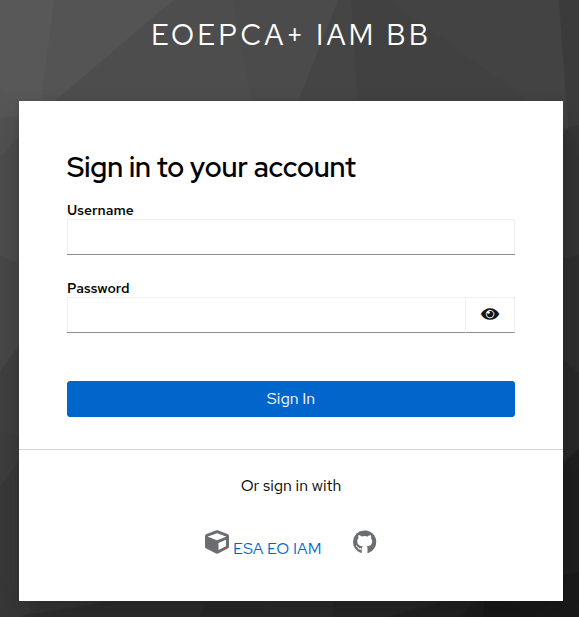

Click on the LOGIN link located in the navigation bar to authenticate in the service.

In a default setup, the authentication is performed using the EOEPCA Identity and Access Management (IAM) service. This allows authenticating using a local account or a GitHub account.

Note: A confirmation is requested the first time a GitHub account is used to authenticate in an EOEPCA service. In particular it is asked if the user name and email address may be shared with the service.

Upon successful authentication, the web browser is automatically redirected to the service portal. The navigation bar now shows the user name and a LOGOUT link.

In order to log out, click on the LOGOUT link. The IAM asks for a confirmation then redirects the browser to the service portal.

Inspection of analysis tools and pipelines

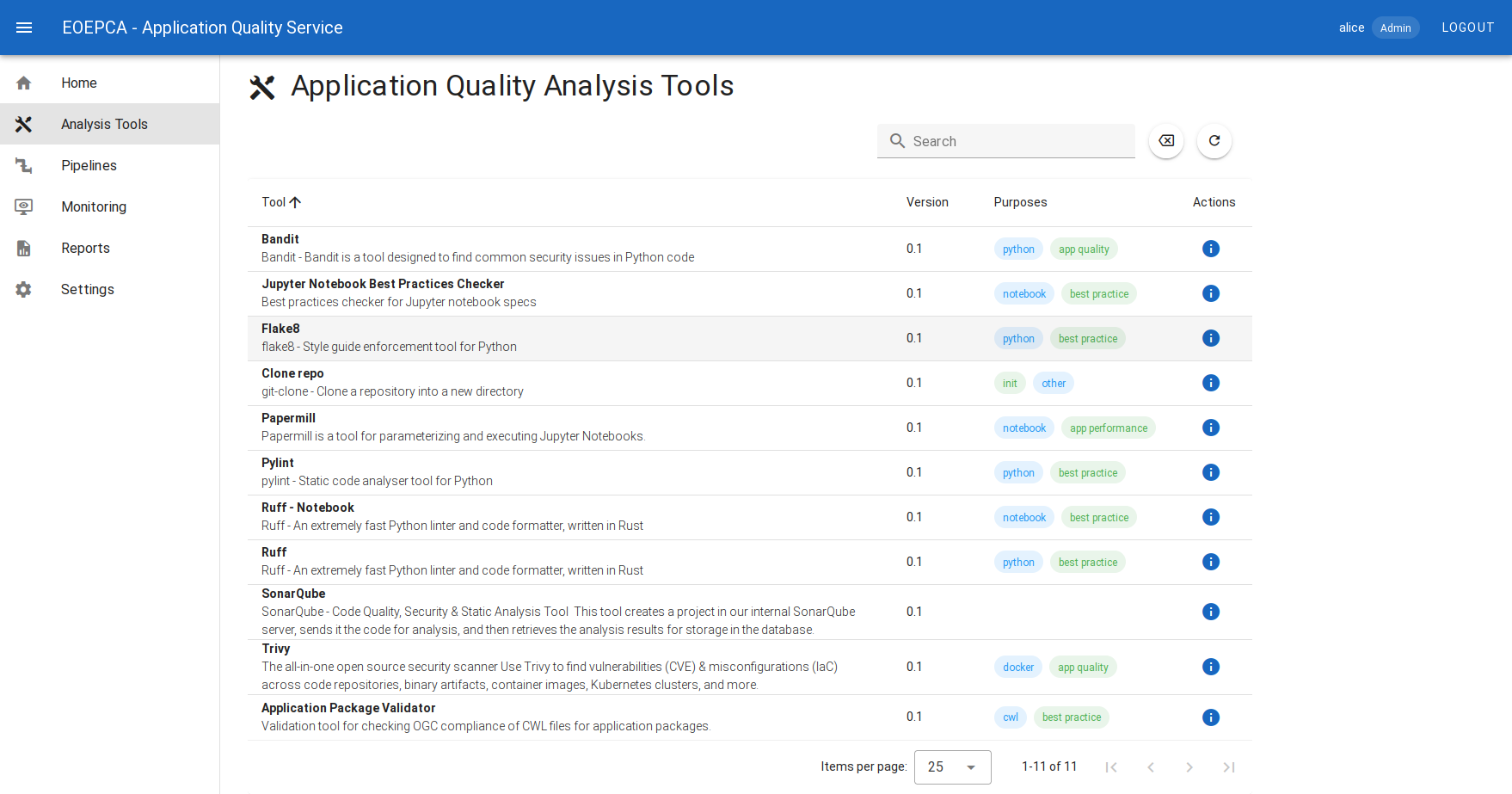

Select “Analysis Tools” in the side menu to display a table listing the analysis tools configured in the service (see also Analysis Tools).

Analysis tools may not be executed indivitually. They must be integrated in analysis pipelines.

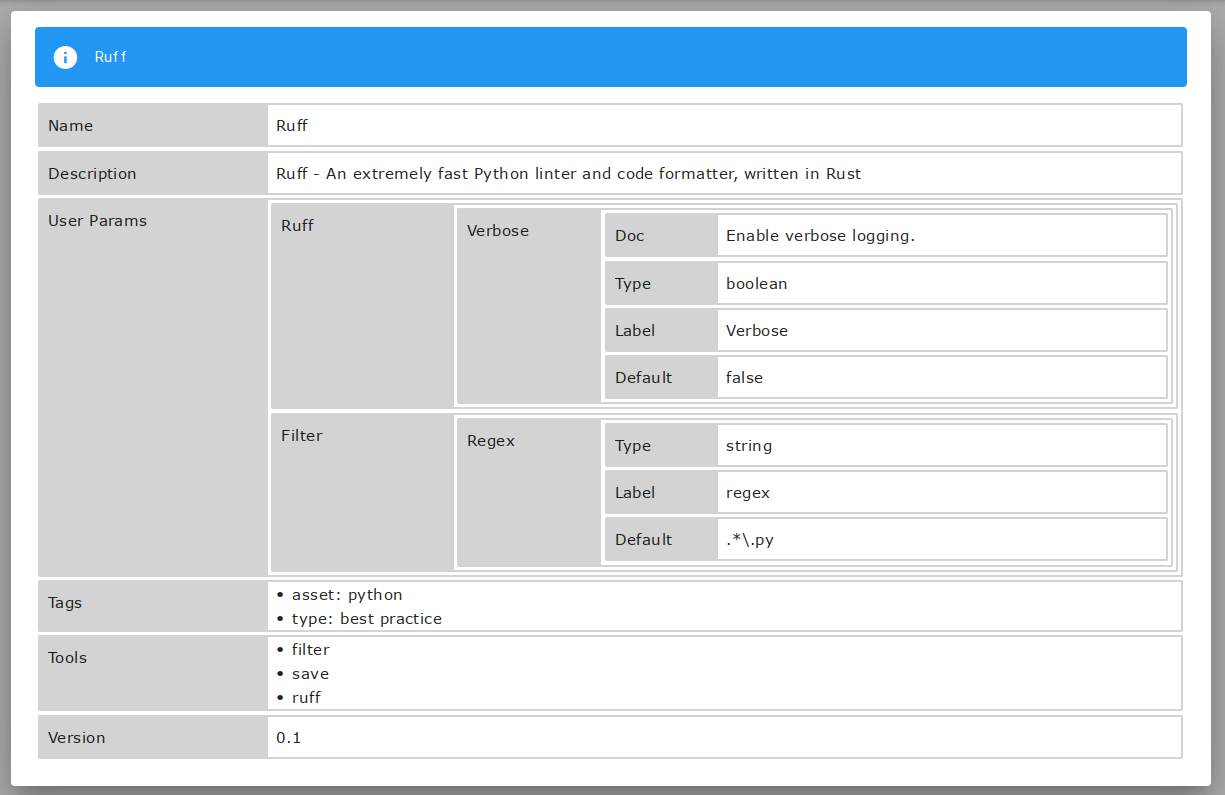

Next to each tool an icon allows displaying the tool properties.

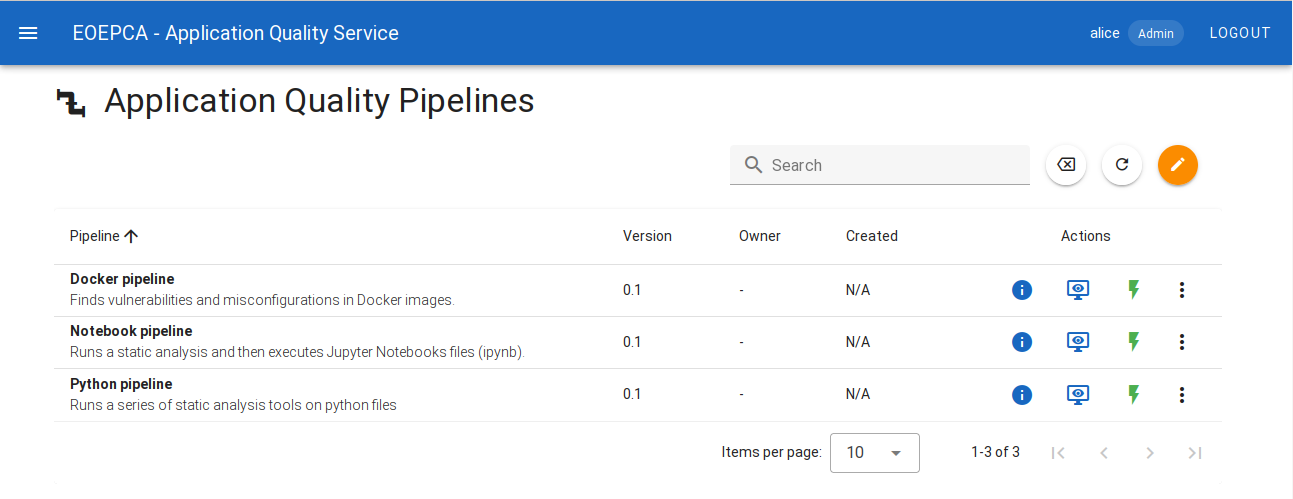

Select “Pipelines” in the side menu to display a table listing the pre-defined analysis pipelines as well as the ones you have created (see below).

A pipeline integrates one or more analysis tools. It may be executed on a given Git repository and branch.

Each row provides the name and version a pipeline as well as a series of action icons:

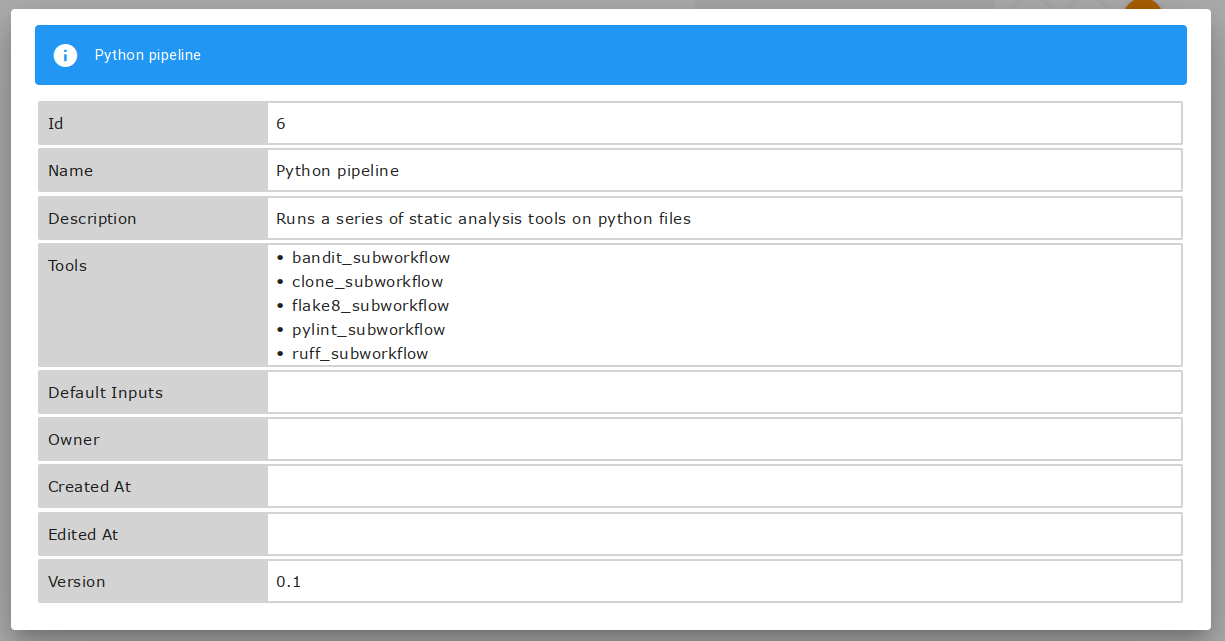

• Use to display the pipeline properties, including the list of integrated tools.
• Use to navigate to the Monitoring page and inspect the past and on-going executions of the related pipeline.
• Use to execute the analysis pipeline.

If you own the pipeline, a 3-dot menu icon is provided giving access to two additional functions:

• Use “Edit” to modify the pipeline properties, the list of integrated tools and their parameters.
• Use “Delete” to delete the pipeline. Note that this operation cannot be undone.

User-defined pipelines

Pipeline creation

The Application Quality service includes pre-defined pipelines that are accessible and may be executed by all authenticated users. These may only be edited or deleted by users having an administration role.

In addition, authenticated users may create and manage their own analysis pipelines, further referred as user-defined pipelines.

To create a new pipeline, enter the Pipelines page and click on the pencil icon located next to the search field and the refresh button.

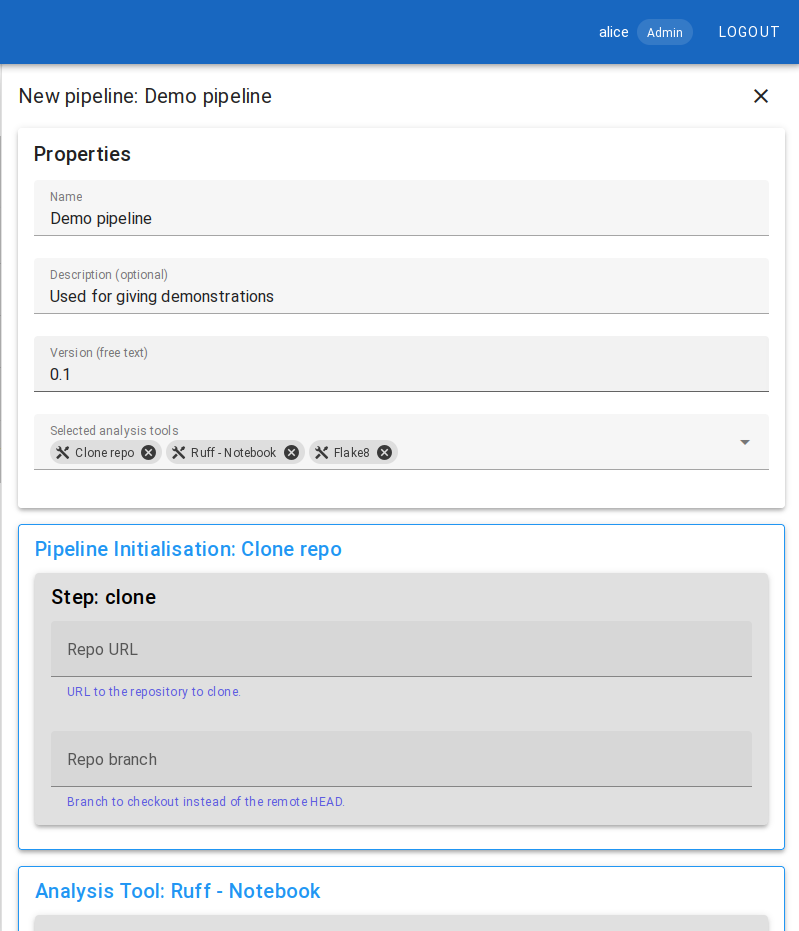

A pipeline creation panel slides from the right side of the window. This contains a form with the following fields:

• The pipeline name
• The pipeline description (may be left empty)
• The pipeline version (free text)
• An analysis tools selector

Below the form, buttons allow cancelling the pipeline creation or submitting the creation request.

Use the tools selector to select the tools to be added in the analysis pipeline. When a new tool is selected, the form is extended with the tool parameters. The values entered in the tool parameters are used as default values when comes the time to execute the pipeline.

Important: Most tools require “Git Clone” to be selected as this is responsible for fetching application files from a git repository. When this is added, a repository URL and a branch name must be provided.

Click on the CREATE button to submit the changes. The panel is automatically closed and the new pipeline is added to the list.

Pipeline editing

In order to edit one of your analysis pipelines, locate it in the pipelines table, click on the associated 3-dot menu icon, and select the “Edit” entry.

The pipeline editing panel slides from the right side of the window. This contains the form for modifiying the pipeline. Click on SUBMIT CHANGES to save the updated pipeline.

Pipeline deletion

In order to delete one of your analysis pipelines, locate it in the pipelines table, click on the associated 3-dot menu icon, and select the “Delete” entry.

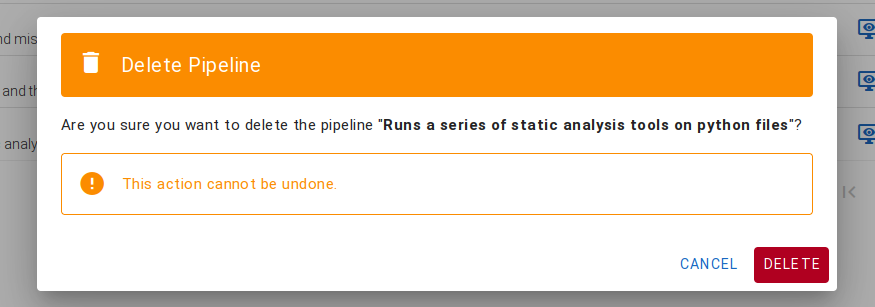

A dialog box appears asking for confirmation.

Important: A deleted pipeline may not be recovered.

Execution of analysis pipelines

Note: The Application Quality service currently supports on-demand pipeline executions. In a future release, it will be possible to configure unattended executions triggered by external events.

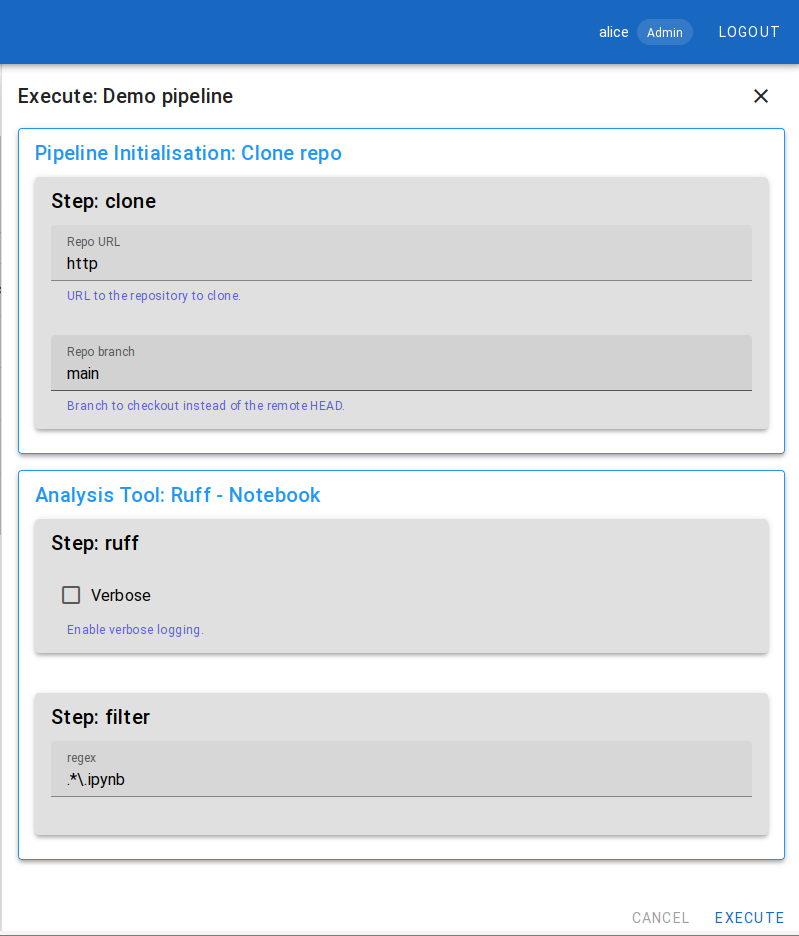

In order to execute an analysis pipeline, navigate to the Pipelines page, identify the pipeline to be executed and click on its icon. The pipeline execution panel slides from the right side of the window. This panel contains a form with the input parameters of the analysis tools integrated in the pipeline.

Keep or modify the parameters default values as necessary, then click on the EXECUTE button.

The Monitoring page is then automatically displayed, showing the executions of the selected pipeline. The newly triggered execution is displayed at the top of the table.

The following controls are located above the executions table:

• The list of configured pipelines allowing to reveal their executions.
• A Start/Stop button allowing to enable and disable the automatic update of the executions list.

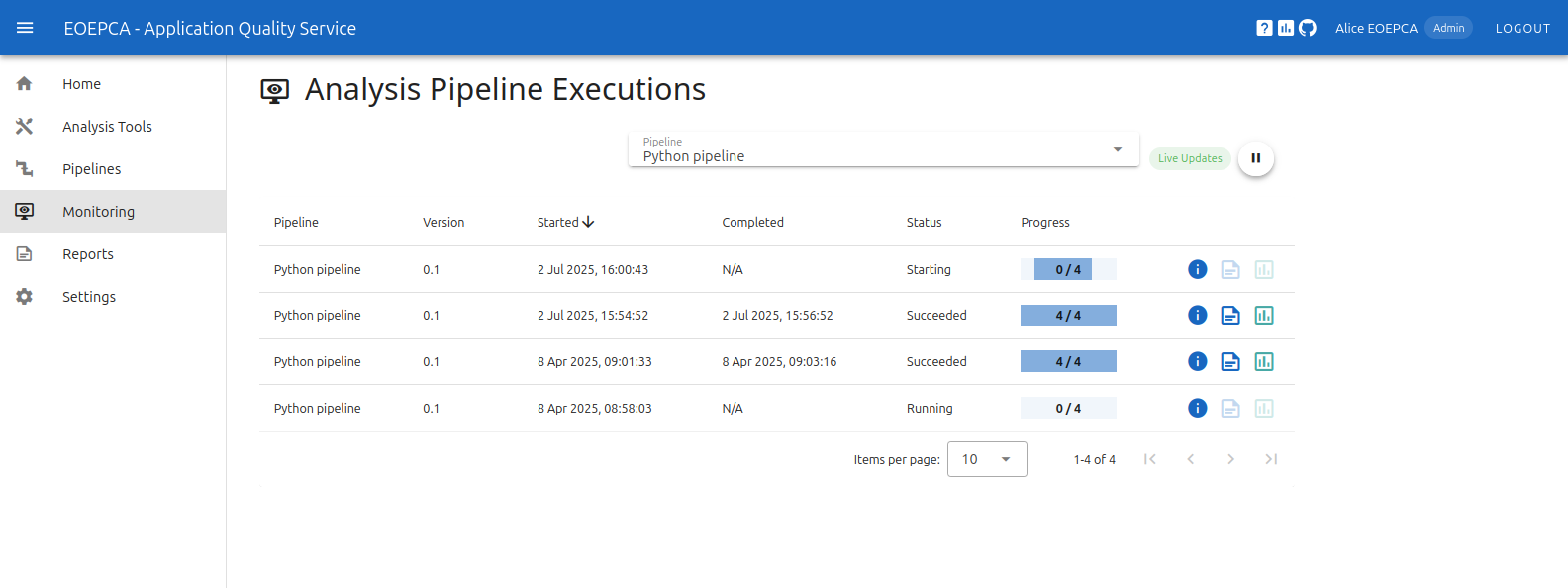

The initial execution status is Starting. This indicates that the resources necessary for executing the pipeline tools are being created.

The status turns to Running when the analysis tools are executed. A progress bar shows the amount of completed executions over the total amount of tools integrated in the pipeline.

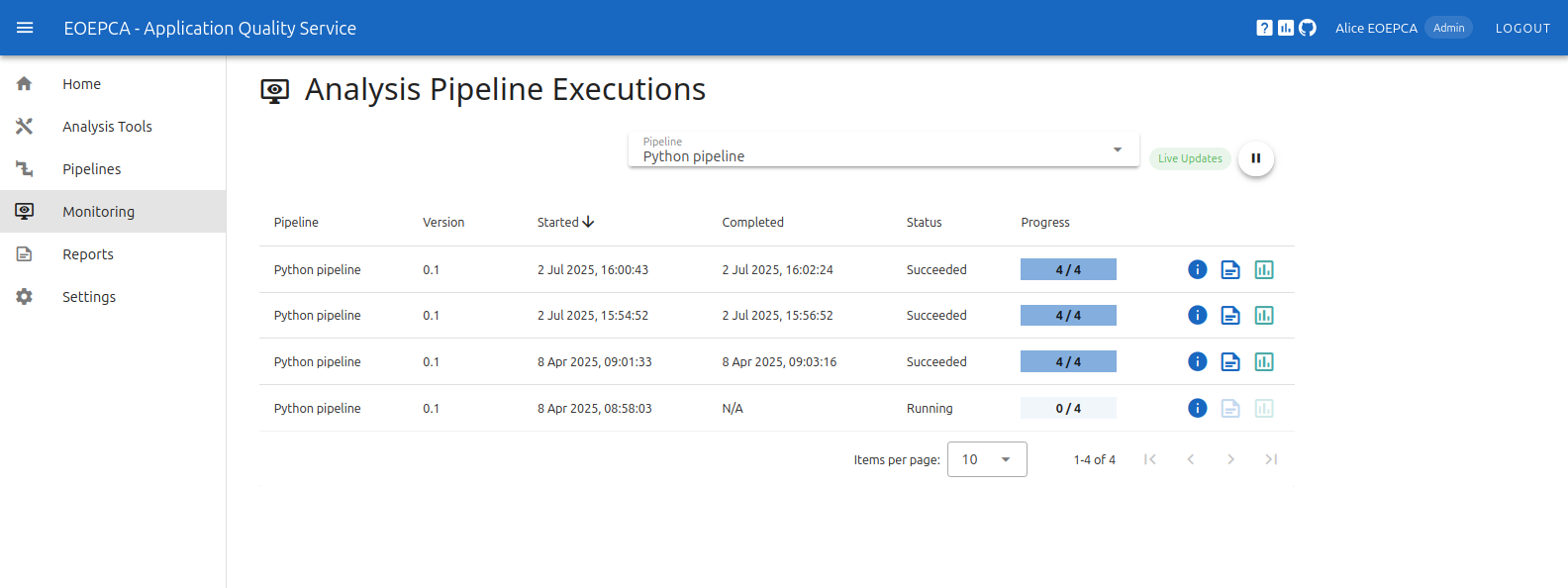

Upon successful completion of the pipeline execution, the status becomes Succeeded and the completion date and time are displayed.

Each row provides the name and version of the pipeline as well as action icons:

• Use to display the pipeline execution properties.
• Use to navigate to the Reports page and inspect the execution report of each tool integrated in the pipeline.
• Use to display the dashboard associated with this pipeline execution in Grafana (see Analysis Dashboards).

Inspection of the execution reports

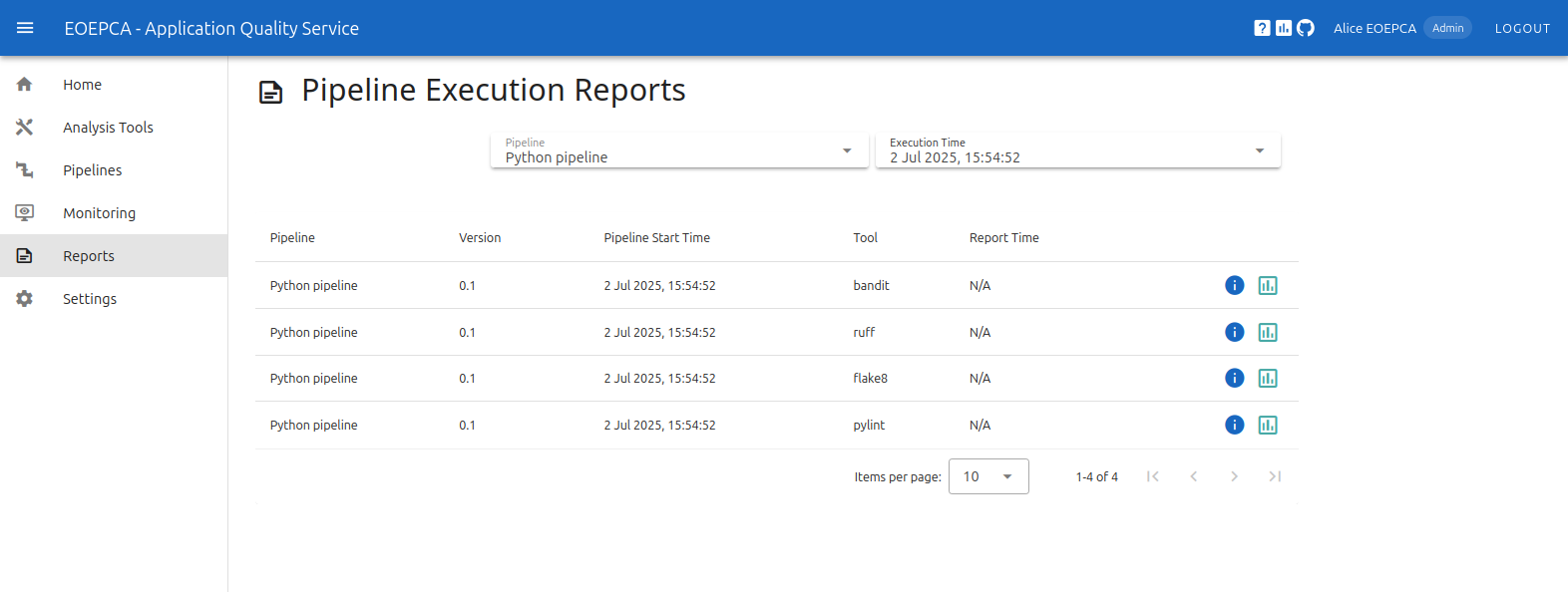

Select Monitoring in the side menu to access the list of past and on-going executions. Select an analysis pipeline in the list above the page to reveal its most recent executions in the table, then identify an execution and click on its associated icon. The Reports page is then displayed, showing the list of reports generated during the pipeline execution.

Alternatively, select Reports in the side menu and select on the page the pipeline and the execution start time to reveal the generated reports.

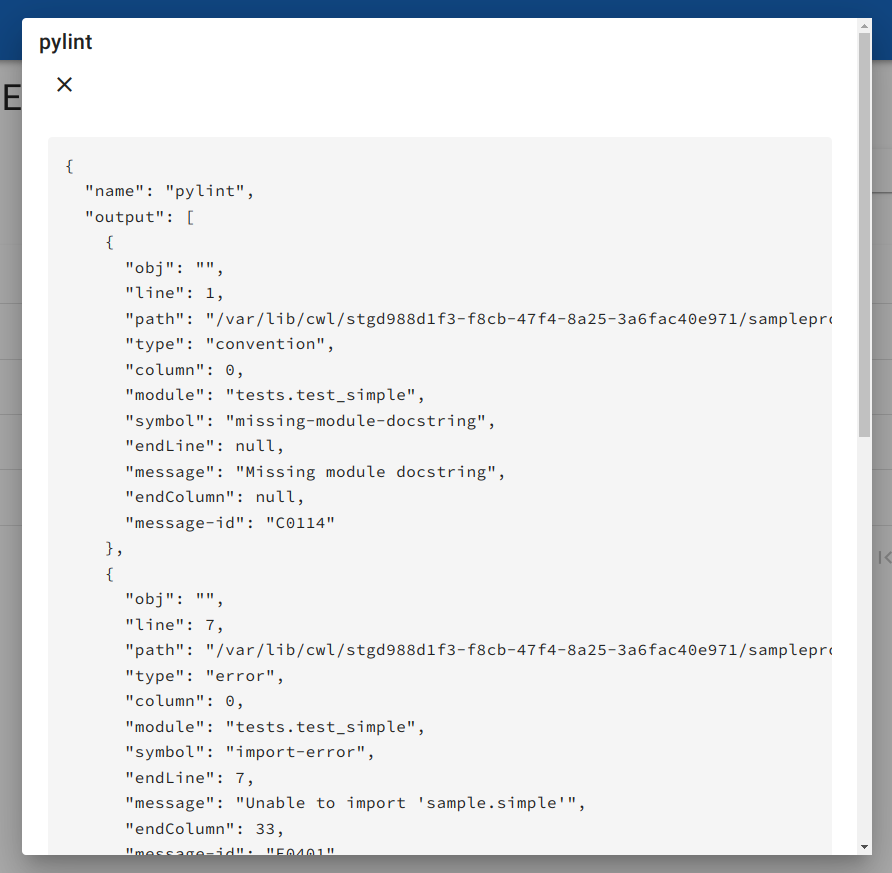

Individual reports may be displayed by clicking on their icon.

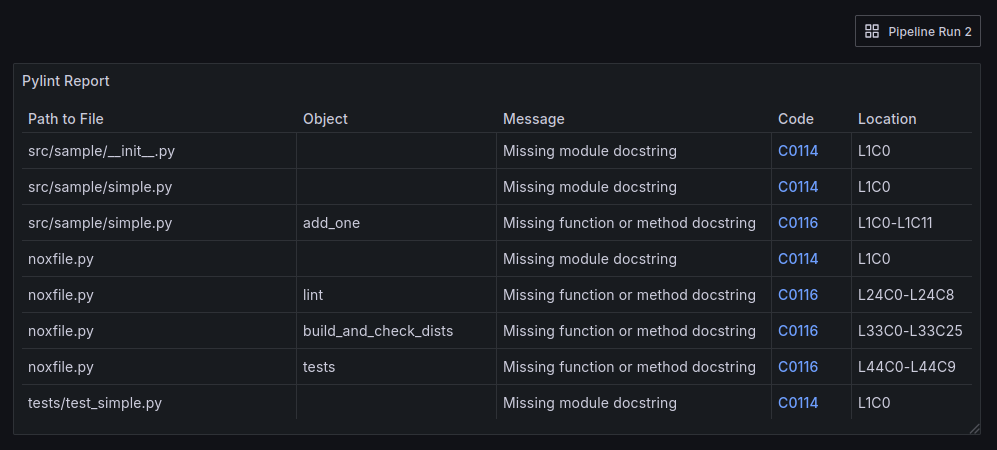

The reports may also be visualised in individual dashboards in Grafana by clicking on their icon (see Analysis Dashboards).
